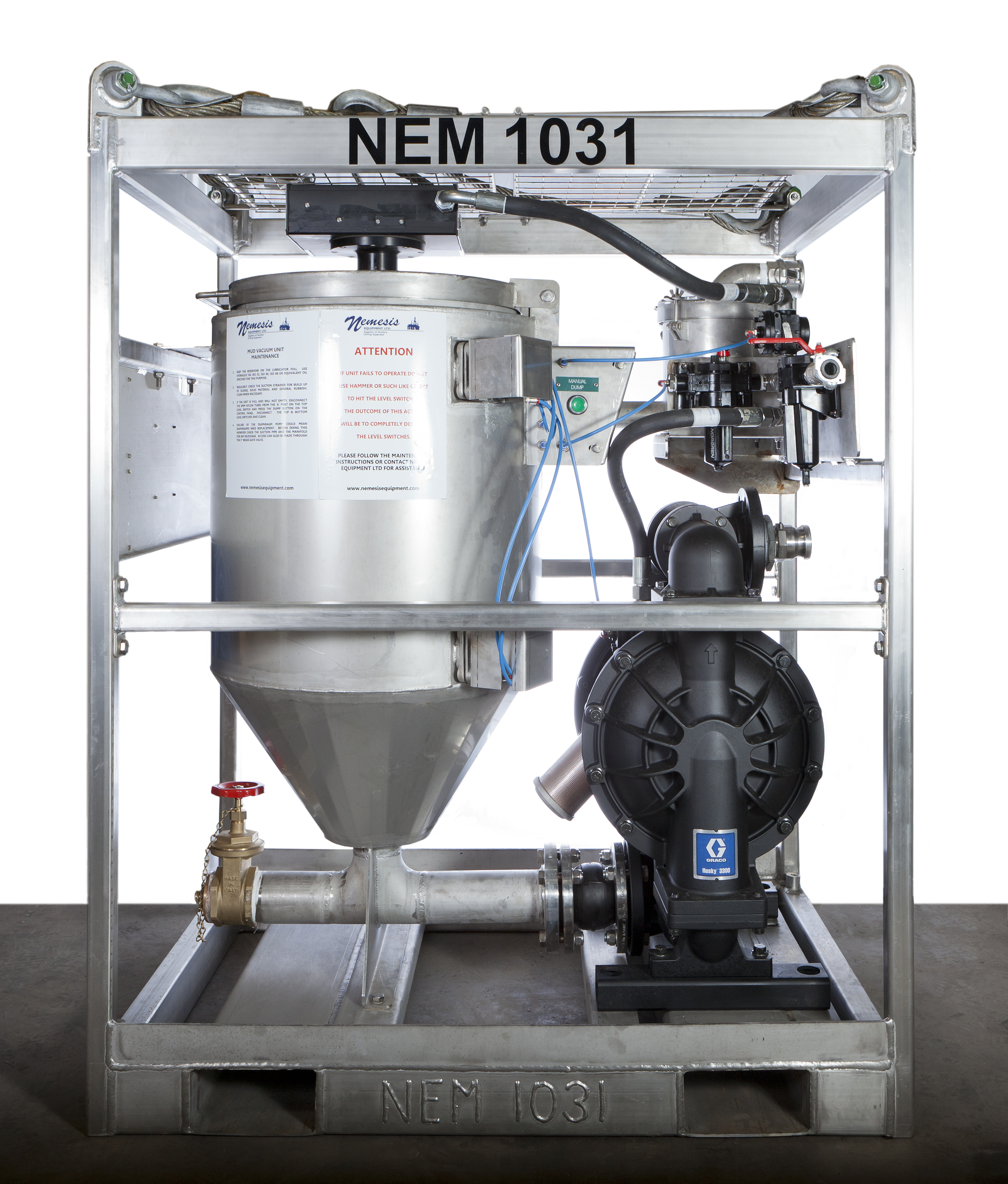

MKIV Mud Vacuum Unit

The MKIV Mud Vacuum Unit is portable, efficient and the perfect solution for all clean up operations that involve oil based or water based drilling muds in the Oil & Gas Industry.

• Requires only standard rig air supply
• Enclosed in a robust skid
• Forklift points and 4 leg wire rope sling
• Tank storage capacity of 210 Litres
• Fully automatic suction and discharge cycle

The unit is designed to the highest standard and conforms to the Atex Directive.

• Classification: Group II Category 3 G IIB T4 X
• Structural elements: designed to comply
• with DNV 2.7-1 and EN 12079 Standards

The unit is available for rental or purchase and comes supplied complete with:

• 2 off 2” x 15 Mtr Anti-Static Suction/Discharge Hoses
• 1 off Suction Lance Assembly & Gulper Head

Dimensions and Weight:

• (L) 1216mm x (W) 880mm x (H) 1575mm
• Weight: 480kg
