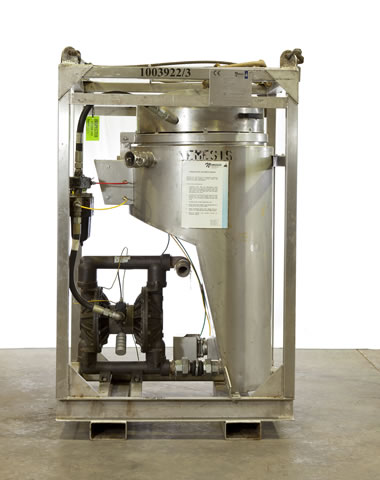

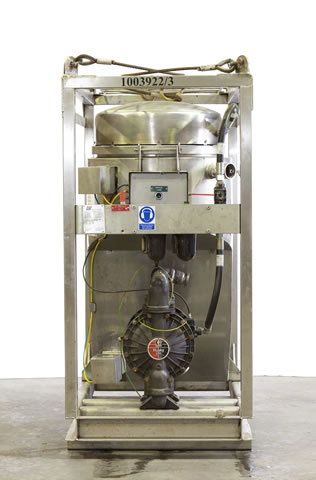

MKII Mud Vacuum Unit

The MKII Mud Vacuum Unit is a portable unit suitable for various functions including the maintenance of rig floors, shale shaker and mud pit areas.

• Tank Capacity of 150 Litres
• Forklift points and 4 leg wire rope sling
• Enclosed in a robust skid
• Unit is fully automatic with a manual dump facility for final discharge on completion of operations

Designed for the rapid recovery of liquid / mud spillages in rig floor operations. The unit can be used with oil, sludge, mud, silt, seawater and other viscous material.

• Maximum free-flow delivery – 150 gpm (568 l/min)
• Maximum fluid working pressure – 120 psi (8 bar)

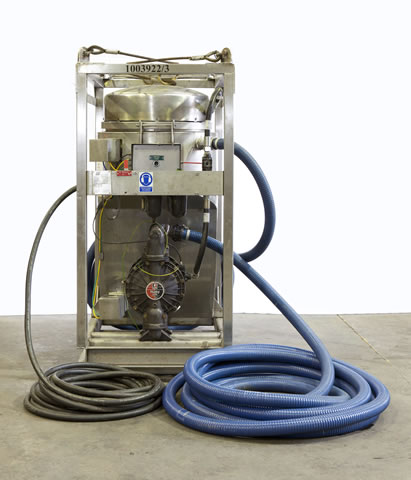

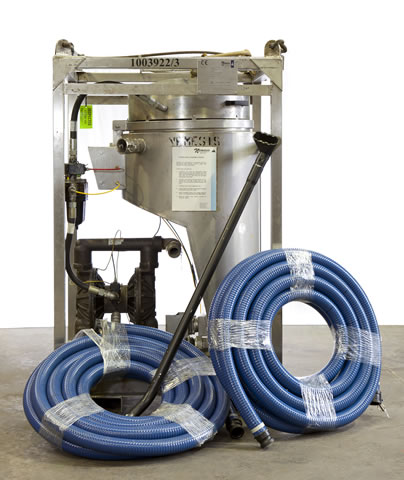

The unit is available for rental and comes supplied complete with:

• 2 off 2"x 15 Mtr Anti-Static Suction/Discharge Hoses
• 1 off Suction Lance Assembly & Gulper Head

Dimensions and Weight:

• (L) 1100mm x (W) 800mm x (H) 1700mm
• Weight: 300kg
